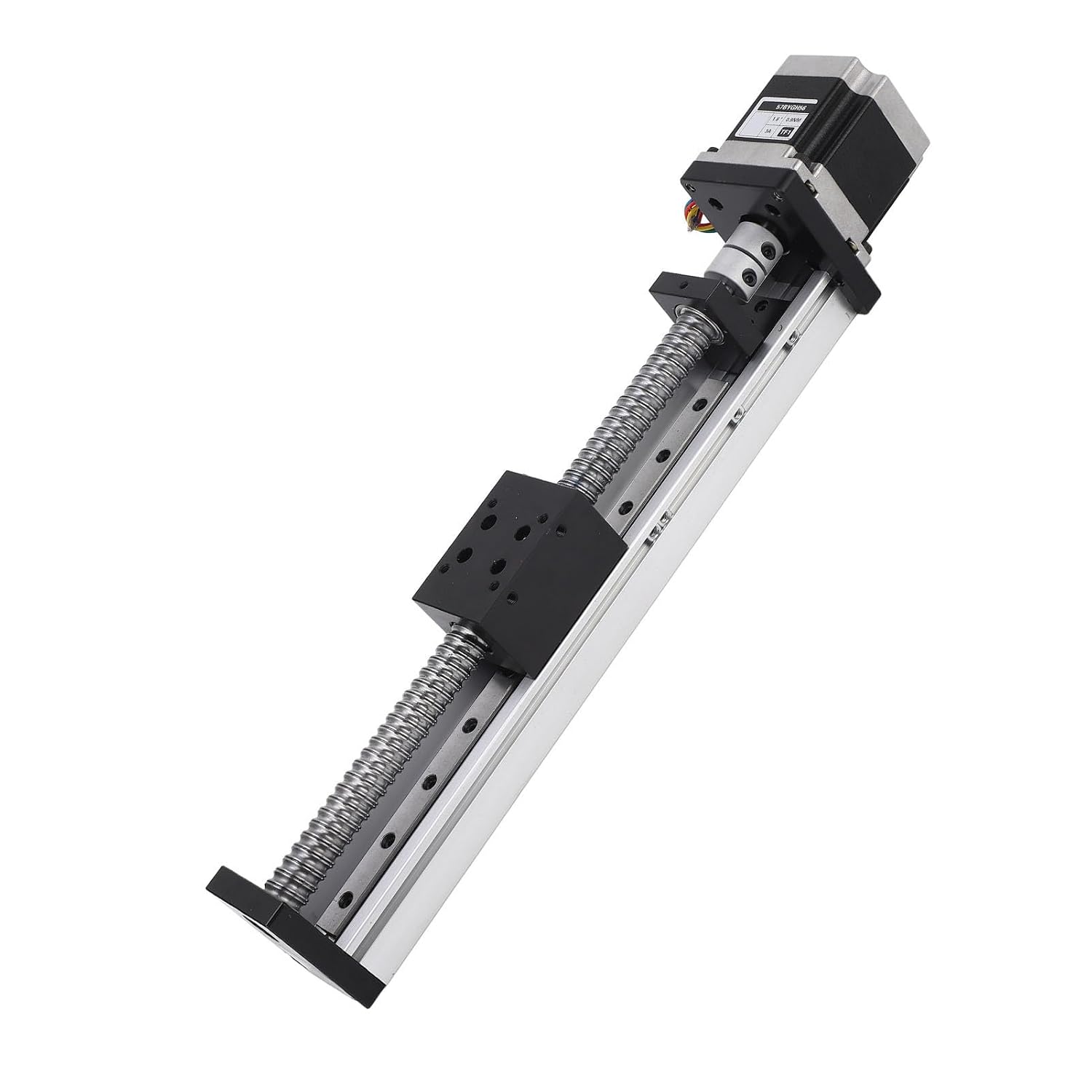

Linear Stage Motion Actuator 200mm Stroke 16mm Ballscrew Strong Load Capacity Linear Slide Table

Item Type: Linear Stage Motion ActuatorMaterial: Aluminum AlloyModel: CBX1605-200-57Maximum Load: Horizontal: 30KGVertical: 15KGMaximum Accuracy: Positioning Accuracy: 0.03mmWidth: Approx. 40mm/1.57inMaximum Stroke: Approx. 200mm/7.87inScrew Diameter: Approx. 16mm/0.63in (1605)Main Function: Convert rotational motion into linear motion, or convert torsion into axial repetitive forceUse: This slide can be paired with cross shaped, T shaped, I shaped, gantry shaped, double axes, three axes, and four axes combinationsPackage List：1 x Linear Stage Motion Actuator

• HIGH PERFORMANCE: With a travel range of 200mm, this linear stage motion actuator offers stable operation, high speed, and low noise.
• STRONG LOAD CAPACITY: Featuring a 16mm ballscrew, this linear slide stage increases the load bearing capacity, with a maximum horizontal load of 30kg and vertical load of 15kg.
• STANDARD M5 MOUNTING HOLE: The side and bottom are equipped with M5 adjustable nuts, allowing for flexible and versatile installation of the slide table.
• STURDY MATERIAL: Constructed with standard aluminum alloy material, the linear guide stage is sturdy and hard, surface sandblasted, beautiful and rust prevention.
• WIDE APPLICATION: This linear slide table is suitable for industrial machinery such as milling machines, lathes, grinders, and more, providing smoothly and precise linear motion.
